Forged Fitting

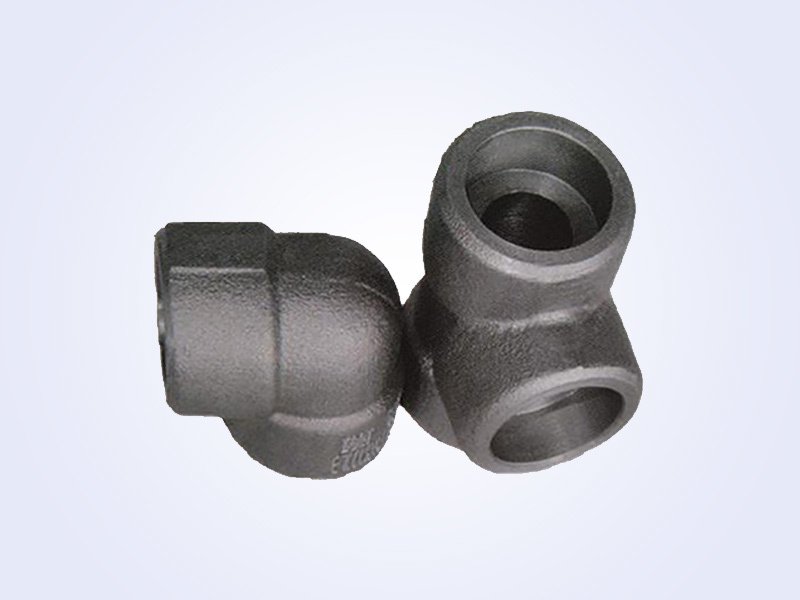

Socket Weld Forged Fitting

Name: Hebei Haihao Group Huadian High Pressure Pipe Fittings Co., Ltd.
Address: Donglin Industrial Zone, Mengcun County, Cangzhou, Hebei, 061400, CN
Telephone: +86 132 9342 5333

Forged socket-weld and threaded fittings — elbows, tees, couplings, unions, caps — in Class 3000 / 6000 / 9000.

Category: Forged Fitting
Material / Standard: ASTM A105 / A182 F304/F316/F11/F22; GB/T 14383
Size range: 1/2" - 4" (DN15 - DN100)
Pressure / Wall: Class 3000 / 6000 / 9000
Applications: High pressure small-bore piping in oil & gas, refinery, petrochemical, power generation (incl. nuclear), chemical, pharmaceutical, shipbuilding and instrumentation tubing.
Technical specs: Standards: ASME B16.11, MSS SP-83/95/97, BS 3799, GB/T 14383. Material: ASTM A105 / A182 F304/F316/F11/F22; GB/T 14383. Size range: 1/2" - 4" (DN15 - DN100). Class rating: Class 3000 / 6000 / 9000. Ends: socket-weld (SW) or threaded (NPT/BSPT). NDT: visual + dimensional; RT/UT/PT/MT and PMI on request.

Description

Hebei Haihao Group manufactures socket weld forged fittings — including elbows, tees, crosses, couplings, half-couplings, unions, plugs, bushings and caps — from forged carbon, alloy and stainless steel blanks, fully machined to ASME B16.11, MSS SP-83/97 and GB/T 14383.

Referenced standards

ASTM A105
Standard Specification for Carbon Steel Forgings for Piping Applications
ASTM International
