Tee

Straight Tees and Crosses

Name: Hebei Haihao Group Huadian High Pressure Pipe Fittings Co., Ltd.
Address: Donglin Industrial Zone, Mengcun County, Cangzhou, Hebei, 061400, CN
Telephone: +86 132 9342 5333

Butt welding straight tees and crosses for carbon and ferritic alloy steel piping.

Category: Tee
Material / Standard: ASTM A-234, ASME/ANSI B16.9
Size range: 1/2" - 42" listed in dimensional tables
Pressure / Wall: Standard Weight, Extra Strong
Applications: Petrochemical, oil and gas, LPG, fertilizer, power plant, nuclear power, shipbuilding, paper, pharmaceutical, food hygiene and municipal projects.
Technical specs: Available specifications include materials such as 10#, 20#, Q235A, 20G, 16Mn, ASTM A234, ASTM A105 and ASTM A403. Equal or reducing configuration, outside diameter, wall thickness and pressure class are confirmed by drawing or RFQ.

Description

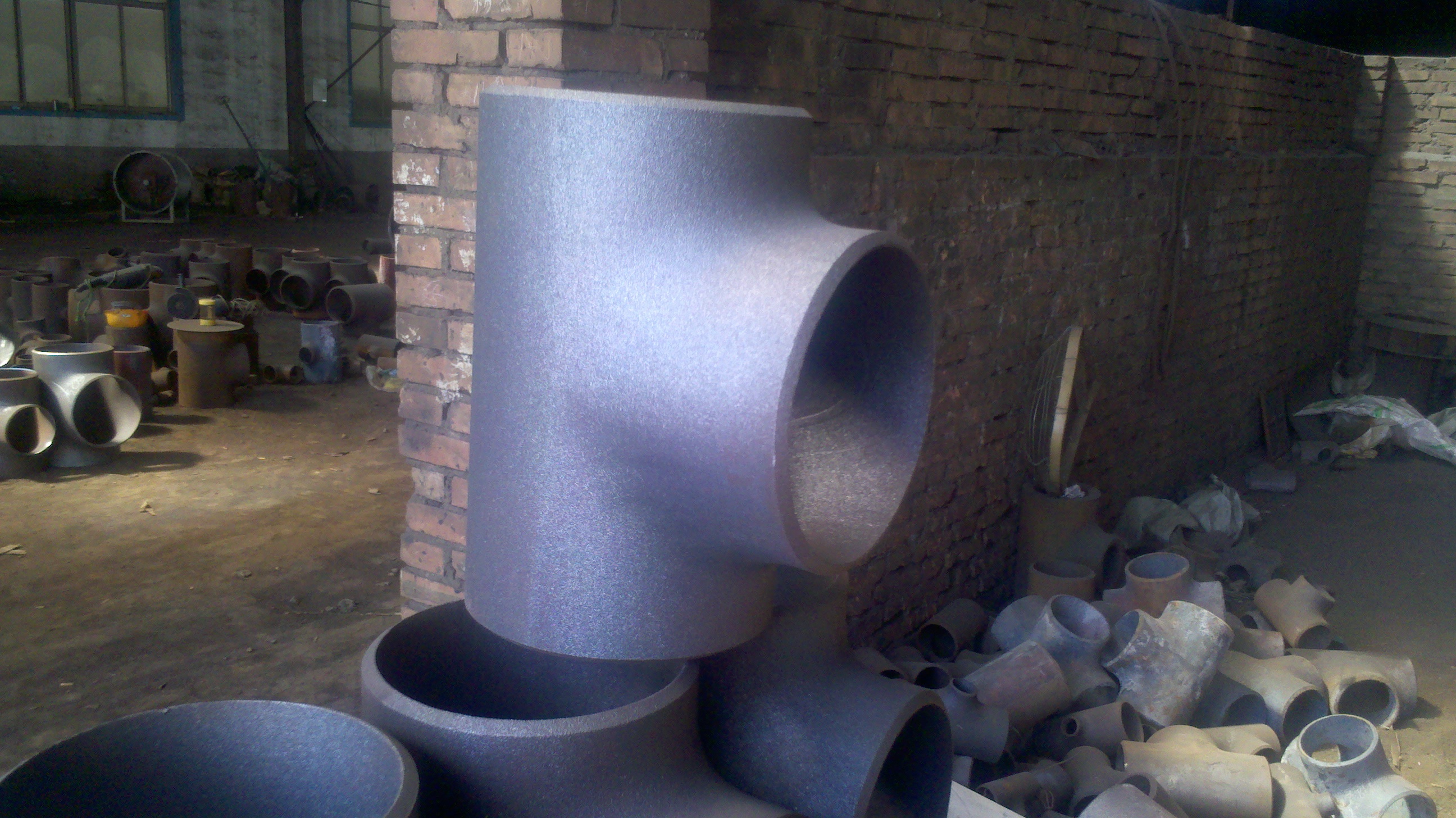

Tees and crosses are used for branch connections and pipe convergence, including equal tees, reducing tees, T-type and Y-type, manufactured to ASME B16.9 / B16.28 / GB/T 12459. Production routes include hot pressing, cold extrusion, forging (small-bore socket/butt weld), plate pressing or casting; size, end preparation and heat-treatment state per drawing or RFQ.

Referenced standards

ASME B16.9
Factory-Made Wrought Buttwelding Fittings
ASME (American Society of Mechanical Engineers)
